This is the page with all the spec on the car. Read on for all the details!

Engine: KAD DOHC 16 valve 2001 spec development race cylinder head (12.2:1 CR) with BD4 camshafts (316 degree duration). Metro turbo block with 4 bolt centre main strap, Cosworth raised top pistons, Arrow EN24V forged conrods and Farndon billet EN40B crankshaft. DTA engine management system with launch control.

Cooling: Standard side mounted three core radiator with Metro Turbo front mounted  radiator, electric water pump and 13 row Oil Cooler .

Gearbox: KAD 5 speed s/cut dog box with Quaife LSD.

Brakes: KAD biased pedal box with 5/8 & 3/4 cylinders. Front 8.4" vented discs with KAD 6 pot calipers. EBC green pads. Rear mini-fins with std linings.

Suspension:

Front- Nylon Spectra Dynamic cones rated at 80 (integrated hilo type) with GAZ adjustable shocks, KAD anti roll bar.

 Rear- Rear beam with alloy KAD rear arms, trax spacs with 150lb springs and KAD anti roll bar. Click here for more pictures.

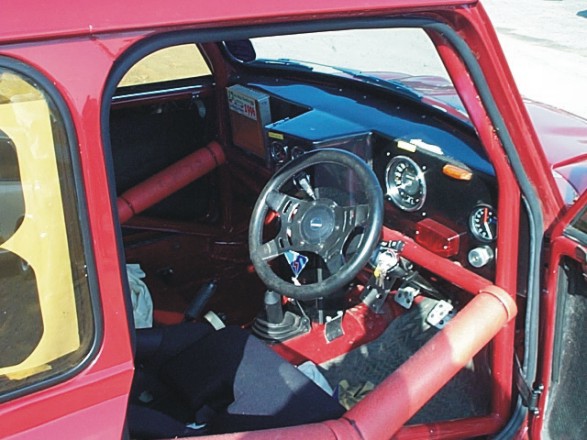

Body: Steel shell with Rollcentre weld-in multi point cage, carbon fibre doors, dash, boot lid and boot floor & KAD fibre glass bonnet.  Curley Carbon Front fitted and painted by Autoservices Bodyshop (01908 373053) Moose Motorsport Wheel arches.

Wheels and Tyres: Dunlop 180/490 x 10 slicks and wets, Hoosier R25 slicks or Yokohama 165/70 AO32R 10's for road use. Spectrum Alloys.
